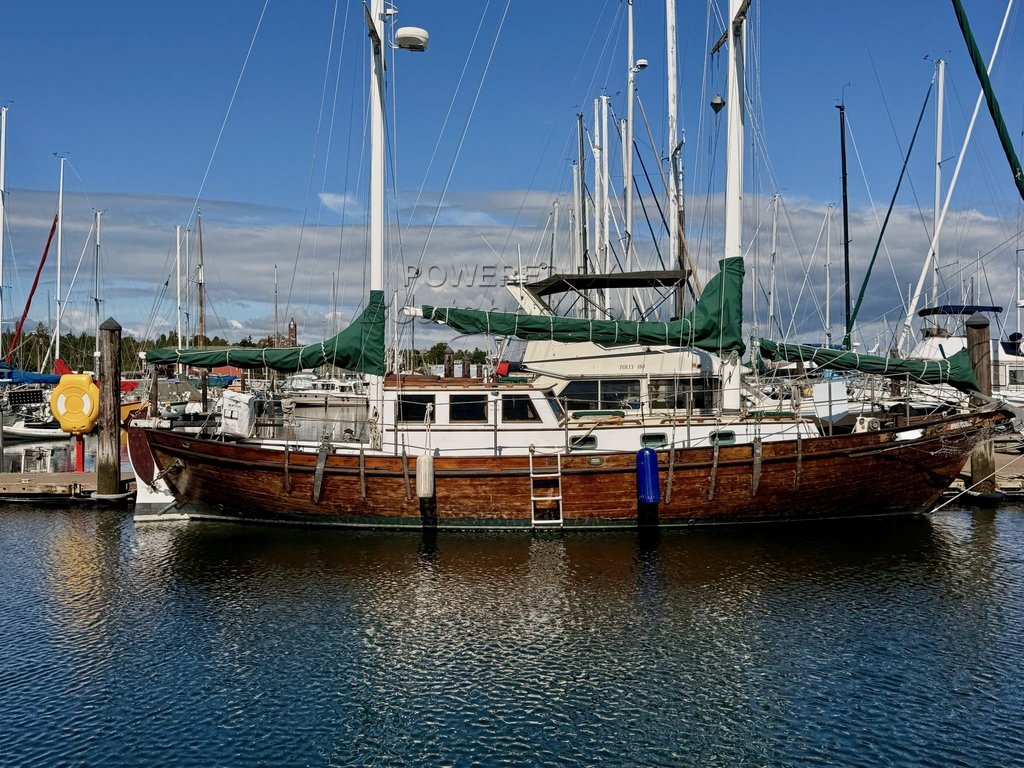

Ingrid 38 Ketch Pilot House
A Rugged Beauty w/Recent Refit
- Boat REF# · 350267
- LOA · 11.58m
- Year · 1995
- Construction · Wood
- Underwater profile · Long keel
- Berths · 3
- Engine · 1 x Diesel 67hp, Yanmar 4JH2-TE (1995)
- Lying · Port Townsend, WA USA -- Shown by Appt!
Extra Details
| Designer | William Atkin |
|---|---|
| Builder | Makela Boatworks |
| Lying | Port Townsend, WA USA -- Shown by Appt! |
| Fuel capacity | 500.0 ltr (110.0 G) Total - 1 Tanks |
| Water capacity | 181.8 ltr (40.0 G) Total - 1 Tanks |
| Holding tank capacity | 54.5 ltr (12.0 G) Total - 1 Tanks |
| Last survey | 12/05/2026 |
Mechanical
| Engine | 1 x Diesel 67hp |
|---|---|
| Engine make and model | Yanmar 4JH2-TE (1995) |
| Engine Hours |
engine1= 2267 |
| Engine Cooled | Indirect |
| Steering | Tiller & Wheel |
| Drive | Shaft |
| Prop(s) | Variable Pitch Feathering |
| Fuel consumption (approx) | 5.7 ltr (1.3 G) /hour At Cruising Speed |
| Cruising speed (approx) | 7 knots |
| Max speed (approx) | 10 knots |
There is easy access to the engine compartment from pilot house by removing sole and steplate. The engine compartment is large and does allow above average visual and physical access. The Yanmar 4JH2-TE engine is original. It has been serviced and is up to date on maintenance. It presents very well and shows no sign of wear on the serpentine belt or leaking gaskets. The mixing elbow shows no leakage or corrosion.
There are 5 Deep cycle batteries - 1 serves as a starter battery and 4 as house batteries. They are stored below the V-berth keeping them dry, within a temperate environment. All terminals and leads appear clean and show no sign of corrosion.
Bilge is solid and dry. There doesn't appear to be any moisture at the shaft flange/seal.
Dimensions
| LOA | 11.58m |
|---|---|
| LOD | 11.58m |
| LWL | 9.70m |
| Beam | 3.66m |
| Draft Min | 1.73m |
| Draft Max | 5.70m |
| Airdraft | 19.51m |
| Displacement | 11,340kg (25,004.3lbs) |
| Headroom | 1.95m |
| Storage | On marina |
Rig
Ketch rigged Unknown Aluminium spars (1995) with stainless steel standing rigging (1995)
Sails
| Mainsail | Lee Sails - Slab (1995) Fully Battened, Lazy Jacks, 1 Reefs |
|---|---|
| Headsail | Lee - Furling (1995) |
| Other sails | Lee Staysail (1995) |
The standing rigging is all oversized and with the chainplates outboard; it makes for easy access and maintenance.
Main Staysail and Mizzen are all self tacking.
The headsail is on a very sturdy Scheafer 3100 furler, while the removable Inner Staysail is hank on. All halyard lines are accessed on deck or at mast.
All sails are protected from UV by very nice canvas covers.
Electrical Systems
12 volt battery, 110 shore power voltage, 5 batteries charged by: engine, shore power
Construction
| Construction | Wood |
|---|---|
| Underwater profile | Long keel |
| Finish | Bitumen finish |
Length overall for moorage purposes is 43 ft.
Constructed of Douglas fir and White Oak framing. She is well sealed and appears sound. The outer hull was finished in pine pitch in 2025. This gives her a very traditional appearance. The process is very low maintenance and environmentally sound.
Her interior is made up of teak joinery along with holly highlights and is in very clean condition.
Above deck and cabin exterior are white marine paint. Her exterior surfaces are finished with traditional pine pitch stain. All lifelines are heavy rope and add to the traditional theme.
-Large stainless steel fuel tanks are accessed below the cabin sole at multiple points.
-The is a NSF 61 Food Grade water tank is situated midship.
-The holding tank is a Polyethylene.
Waterline Boats / Boatshed does not independently verify capacities and measures, which are reported from seller-provided information and/or literature.
Accommodation
| Total # of berths | 3 |
|---|---|
| No. of double berths | 1 |
| No. of single berths | 1 |
| Cabin(s) | 2 |
| Handbasin | 2 |
| Shower | 1 |
| Heads | 1 heads (Electric) |
As you step aboard and into the cockpit, you can see 4 locking compartments integrated in to the cockpit seating.
Center aft of the cockpit is a removable cover to access the lazerrette allowing access to storage and steering components. The tiller is in easy reach and this space offers plenty of room to lounge or work.
You enter the pilothouse via a nice "Dutch" companionway door, off center to starboard. Within the pilothouse you'll find a lot of space to relax and take in the views. There is over 6'3" of overhead space throughout the interior.
Entering the companionway door, and to port as you step down, you'll find nicely upholstered cushions on the booth style settee. The sole of the pilothouse is removable and allows great access to the engine compartment for servicing. A cabinet below the aft booth seat houses a 50 litre - 12v cooler.
The pilot house also doubles as a well appointed helm station. All controls for navigation and systems monitoring are here.
Moving forward from the helm station is a low down step to the galley. This is a large workspace with fold up cutting board and two large basins that are deep and easy to clean. There is a gimbaling 2 burner stovetop with oven located to starboard as you descend from the pilothouse.
A seperate quarter berth is also placed opposite the galley. It is perfectly placed mid-ship and will offer a comfortable guest berth while underway or at anchor.
The head is located to port and is forward of the enclosed quarter berth. There you will find an electric macerating head with shower.
Moving forward of the head is the V berth. Within the V berth you'll find a large space for accessing shelves and cabinetry. There is shelving that surrounds either side of the berth. Access to the anchor locker is all the way forward and is closed in with wood hatch.
Dickinson stove heating unit.
2 burner gas cooker/stove
Accommodation
| Cooker/stove | |
|---|---|
| Oven | |
| Sink | |
| Icebox | |
| Refrigerator | |
| Curtains | |
| Cabin heating | |
| Pressurised water system | |
| Hot water system | |
| Non-Smokers |
As you step aboard and into the cockpit, you can see 4 locking compartments integrated in to the cockpit seating.
Center aft of the cockpit is a removable cover to access the lazerrette allowing access to storage and steering components. The tiller is in easy reach and this space offers plenty of room to lounge or work.
You enter the pilothouse via a nice "Dutch" companionway door, off center to starboard. Within the pilothouse you'll find a lot of space to relax and take in the views. There is over 6'3" of overhead space throughout the interior.
Entering the companionway door, and to port as you step down, you'll find nicely upholstered cushions on the booth style settee. The sole of the pilothouse is removable and allows great access to the engine compartment for servicing. A cabinet below the aft booth seat houses a 50 litre - 12v cooler.
The pilot house also doubles as a well appointed helm station. All controls for navigation and systems monitoring are here.
Moving forward from the helm station is a low down step to the galley. This is a large workspace with fold up cutting board and two large basins that are deep and easy to clean. There is a gimbaling 2 burner stovetop with oven located to starboard as you descend from the pilothouse.
A seperate quarter berth is also placed opposite the galley. It is perfectly placed mid-ship and will offer a comfortable guest berth while underway or at anchor.
The head is located to port and is forward of the enclosed quarter berth. There you will find an electric macerating head with shower.
Moving forward of the head is the V berth. Within the V berth you'll find a large space for accessing shelves and cabinetry. There is shelving that surrounds either side of the berth. Access to the anchor locker is all the way forward and is closed in with wood hatch.
Dickinson stove heating unit.
2 burner gas cooker/stove
Deck Gear
| Sail cover | |
|---|---|
| Fenders | |
| Boathook | |
| Davits | |
| Swim Ladder | |
| Instrument Covers |
3 halyard winches
3 sheet winches
Manual Simpson - Lawrence Sea Tiger 555 windlass
2 anchors
(65# CQR - 65# Claw)
45.72m of chain
76.20m of warp
(Inflatable)
A 65lb CQR anchor is attached to 150 ft of 3/8" chain along with 250 ft of nylon rode. There is also a spare 65lb Bruce (Claw) anchor on board.
There are 6 Winches; 3 of which are self tailing. Running rigging and deck hardware appears solid and functional. All travelers and blocks show and function well.
Nav Equipment
| Compass | |
|---|---|
| Speed | |
| Wind | |
| Radar | |
| VHF | |
| VHF DSC radio | |
| GPS | |
| Chart plotter | |
| Autopilot | |
| Clock | |
| Barometer | |
| Navigation lights | |
| Echo sounder | |
| Radar Reflector |
All the necessary electronic navigation aids are present and in working condition. All controls are monitored from the helm station in the pilothouse. An auto helm 4000 is installed and functions very well moving this heavy vessel.
For Depth - Speed and Wind, there is a KVH Quadro system installed just about the helm. The Radar is a Raytheon system that works perfectly.
A Raymarine Hybrid/Touch MFD is also at helm. Access to panels and wiring can be achieved by accessing cabinetry at the helm station.
Safety Equipment
| LPG Detector | |
|---|---|
| Carbon Monoxide detector | |
| Life jackets | |
| Life buoys | |
| Horn | |
| Boarding ladder | |
| MOB System | |
| Emergency steering |
3 bilge pumps (1 manual / 2 Electric)
This vessel will not come with a tender. However, there is a mounting plate for a tender motor on the stern.
Attachments for boarding ladder is on starboard at midship.
There is a carbon monoxide detector mounted in galley. 2 electric - automatic high volume bilge pumps are located in main bilge.
Spreader lights for low visibility deck work are directed forward and aft flooding downward.
Broker's Comments
This Ingrid 38 was professionally built and commisioned in 1995 by renowned boat builder, Howard Makela (Makela Boatworks) and she is constructed of Douglas Fir planking on White Oak framing.
She was hauled out in 2025 and had a stem to stern refresh by the current owners; a pair of very fastidious and detail oriented graduates of the PNW Wooden Boat School in Port Townsend WA.
As with all Ingrids, she is a heavy, stable blue water sailboat. Trustworthy and solid, she goes where she is pointed without complaining. No doubt, she can keep her crew safe and comfortable in any sea state.
She is also one of very few Ingrids that is offered as a pilot house. All records including drafts and blueprints are available.
In the cabin, you'll find a warm and bright array of cabinetry and joinery that is as solid as the day she was commissioned. A cabinet full of build sheets, system records and manuals will be included with sale and available for viewing for interested buyer. Inside and out she shows wonderfully and is "right as rain" structurally as well as aesthetically". Her interior is dry and clean. All fittings and joinery are tight. No stains or signs of water ingress around fittings. Bilges are dry and clean.
She has a modern Raytheon Radar along with Raymarine, and KVT navionics. All systems function as they should. She needs nothing except a mindful owner, provisioning and desire to carry on.
Her current owners are the 3rd. They are true mariners as well as skilled shipwrights. She has been well loved and cared for, however, a new opportunity has been presented so they have decided to sell.
This Ingrid 38 presents a rare opportunity for the solo sailor or couple to venture off into the deep blue or live aboard and travel the Pacific Northwest.
Note: These boat details are subject to contract.
Note: Offers on the asking price may be considered.
Note: For berthing and docking purposes ; LOA represents LOD as well as overhangs off of stern and forepeak.
